PA
System/o`VXe |
|

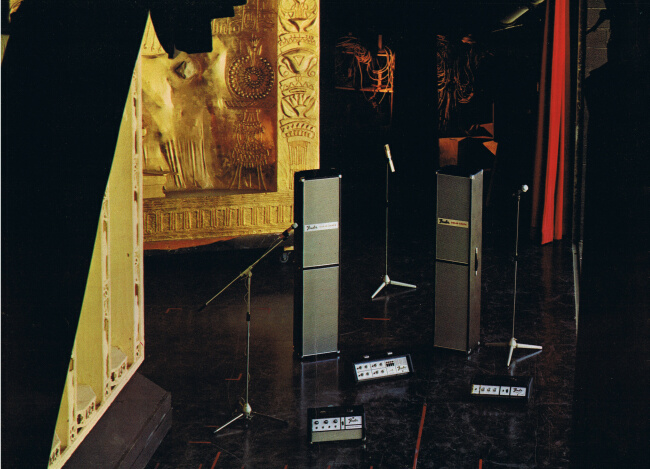

| Irvine
Bowl,Home of the Festival of Arts,Laguna Beach,California |
|
 |
|
| left to right:
Boom stand with F-520 mike/Solid-State P.A.System (Amp unit and two columns)/Straight
Stand with F-570 Reverb Mike/Reverb Unit/Straight Stand with F-550 Mike/Foreground:Echo-Reverb
Unit |
|
| Waiting in the
wings for your cue? Step into the spotlight and win rounds of applause with
this combination of elegant design and sophisticated quality...the Fender
Solid-State Public Address system. These accessories look great and add
professional depth on stage. NO flat sounds here but a full,rich setting
for any performing group. FENDER SOLID STATE PUBLIC ADDRESS SYSTEM Fender's Public Address System offers traveling groups and club owners a portable,high Power,threepiece combination designed to effectively cover most any room and hall. This outstanding sound system features 100 watts RMS power with all silicon type transistors.The power stage is cooled by convection through the front panel. The amplifier has four high impedance inputs into separate channels. Each of the four channels has its own concentric volume Control and Tone Control that allow both boost or cut. In addition,each of the channels has an individual pilot light showing which are in use.Another outstanding feature is a switching and light identification panel permitting the introduction of echo or reverberation for each or all of the channels. A V.U.meter is placed immediately under the echo switching panel for easy reading of input signal strength. The system features two column speaker units. Each contains four 10 heavy duty speakers or four 12heavy duty speakers. 0ne of these combinations will prove perfect for maximum sound coverage. The back panel controls include:on-off ground switch, AC outlet,circuit breaker,extractor-type fuse post, two speaker input jacks,echo input,echo output, four microphone input jacks.All three units are covered in black vinyl gTolex" with matching grill cloth to complete an extremely attractive system. All cabinetry is made from 3/4wood with lockjoint corners to withstand the hardest professional use. NEW POWER RATINGS:RMS power,105 watts;EIA music power,175 watts;EIA peak power,350watts.Size: Amplifier;Height 7,Width 19,Depth 10.Speakers each;Height 60-1/2,Width 13,Depth 9-1/2(10Columns). FENDER ECHO-REVERB UNIT Utilizing a unique disc-type delay,the Echo-Reverb unit delivers echo,reverberation and vibrato.This transistorized electrostatic memory system stores audio signals for a moment;then reproduces and repeats them. Individual echoes or a reverberant effect from a blend of rapidly repeating echoes may be obtained.Light vibrato is incorporated in the circuit and is present at any setting. The cabinet is built to take the hardest professional use and styled to match Fender Amplifiers. Front controls include:echo volume (including power on-off),reverberation,echo delay (settings of long-short-combined),remote foot switch jack,two instrument input jacks,amplifier output jack and pilot light. FENDER SOLID STATE REVERBERATION UNIT Fender's Transistorized Reverb unit is designed for use with all amplification systems including Public Address.Thegexpanded sound" effect produced by this unit gives an added dimension to any amplified instrument or voice. In addition,it may be used with phonograph and tape recorded program material. It incorporates its own amplifier section and the Hammond Reverberation adapter. Used with the player's normal amplifier,reverberation is switched in or out by use of the remote on-off reverb foot switch. Its modern front panel control section includes the instrument input jack,gain control,blend control,tone control,amplifier output jack,on-off rocker switch and pilot light. The gain control advances reverberation signal and the blend control mixes reverb with the instrument or voice signal. The back panel includes AC outlet,fuse post,jack for remote control foot pedal.Size:Height 5-1/4,Depth 9-1/2,Width 18-1/2. |
|
 |
|
 |
|
